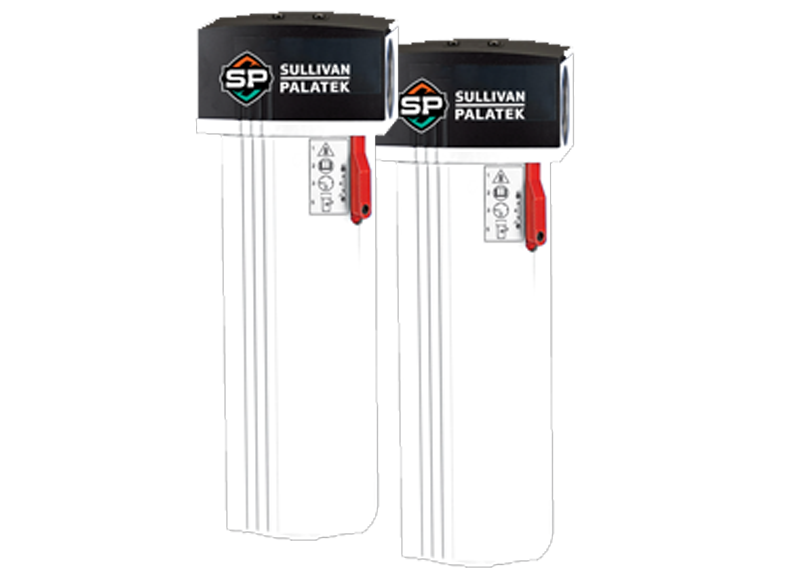

The ProPure coalescing filter establishes a higher benchmark in fluid purification and management.
With its meticulous engineering, this filter guarantees exceptional performance and durability across diverse industrial uses.
![ProPure_Threaded_Filters-1](https://www.sullivan-palatek.com/wp-content/uploads/2024/08/ProPure_Threaded_Filters-1.png)
Features & Benefits
Internal-to-external Flow Design Fluid flows from the inside to the outside of the filter element, maximizing efficiency and particle separation.
Effective Contaminant Separation Removes solids, oil, and water aerosols from pressurized fluids, maintaining fluid purity and system integrity.
Gravity-Assisted Drainage Liquid components and contaminants gravitate downward within the filter material, collecting at the bottom of the housing for easy manual or automatic drainage.
Differential Pressure Gauge Monitors filter element condition by indicating differential pressure, facilitating timely maintenance and optimal filter performance.
Automatic Float Drains Features mechanical automatic condensate drains that open and close based on condensate levels, ensuring continuous operation, and minimizing manual intervention.
Versatile Operation Adjustable settings allow for both automatic and manual drainage modes, accommodating maintenance and operational needs without interrupting flow.
* Element types: C=coarse, F=Fine, S=Super fine, A=Activated Carbon
Model | CFM @ 100 PSI | CFM @ 120 PSI | Housing Rating | NPT Connection (in) |
---|---|---|---|---|
SPTF25* | 25 | N/A | 0 – 232 PSIG | 3/8 |
SPTF30* | 30 | 35.1 | 0 – 232 PSIG | 1/2 |
SPTF50* | 50 | 58.5 | 0 – 232 PSIG | 1/2 |
SPTF80* | 80 | 93.6 | 0 – 232 PSIG | 1/2 |
SPTF100* | 100 | 117 | 0 – 232 PSIG | 3/4 |
SPTF125* | 125 | 146.25 | 0 – 232 PSIG | 1 |
SPTF160* | 160 | 187.2 | 0 – 232 PSIG | 1 |
SPTF200* | 200 | 234 | 0 – 232 PSIG | 1 |
SPTF250* | 250 | 292.5 | 0 – 232 PSIG | 1 1/2 |
SPTF330* | 330 | 368.1 | 0 – 232 PSIG | 1 1/2 |
SPTF450* | 450 | 526.5 | 0 – 232 PSIG | 1 1/2 |
SPTF500* | 500 | 585 | 0 – 232 PSIG | 2 |
SPTF600* | 600 | 702 | 0 – 232 PSIG | 2 |
SPTF800* | 800 | 936 | 0 – 232 PSIG | 2 |
SPTF1000* | 1000 | 1170 | 0 – 232 PSIG | 2 1/2 |
SPTF1300* | 1300 | 1521 | 0 – 232 PSIG | 2 1/2 |
SPTF1500* | 1500 | 1755 | 0 – 232 PSIG | 3 |
SPTF1900* | 1900 | 2223 | 0 – 232 PSIG | 3 |
